Morrison Bros Fig. 300, 300AL, 300ATS, 300ALM, 300ALMM (Manual Tube Nozzles & Manual Spout Nozzles)
Item Series:
Morrison Bros Fig. 300, 300AL, 300ATS, 300ALM, 300ALMM (Manual Tube Nozzles & Manual Spout Nozzles)
Downloadable Resources:

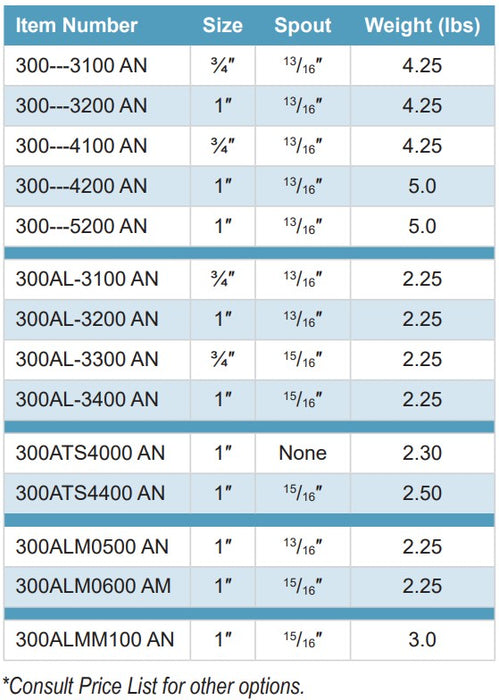

Product Ordering Information:
Products Description & Features:
Description:
FIG 300 - Manual Tube Nozzle - Brass. Manually-operated shut-off nozzle used for gravity and low pressure fueling.

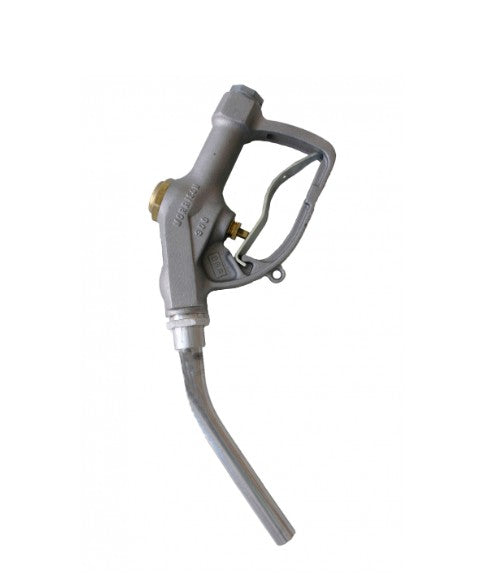

FIG 300AL - Manual Tube Nozzle - Aluminum. Manually-operated shut-off nozzle used for gravity and low pressure fueling.

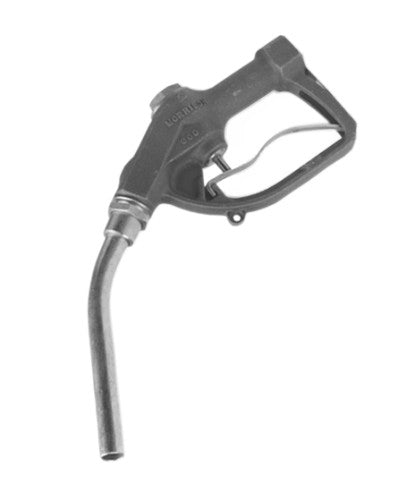

FIG 300ATS - Manual Tube Nozzle - Leaded Aluminum/SS/PTFE. For utility filling applications with pressures up to 35 PSI. Rugged, long-lasting design good for many chemical filling applications.

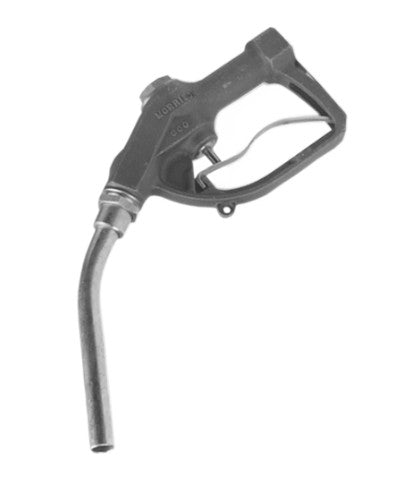

FIG 300ALM/FIG 300ALMM - Manual Spout Nozzle - Aluminum/Manual Spout Nozzle With Expanded Hand Guard - Aluminum. Manually-operated shut-off nozzle used for gravity and low pressure fueling and water dispensing.
Standard Features:
FIG 300/FIG 300AL/FIG 300ATS/FIG 300ALM - 35 PSI maximum working pressure, Heavy duty construction.
FIG 300ALMM - 35 PSI maximum working pressure, Heavy duty construction, Includes arctic mitten expanded handle guard.
Construction Details:
FIG 300/FIG 300AL - Body and cap: Brass, Disc: FKM, Stem: Brass, O-ring: FKM, Spout: Brass.
FIG 300ATS - Body: Aluminum, Cap: Stainless Steel, Disc: PTFE, Stem: Stainless Steel, Packing: PTFE, Spout leaded: Aluminum (15/16 OD), Spout unleaded: Aluminum (13/16 OD).
FIG 300ALM/FIG 300ALMM - Body: Anodized aluminum, Cap: Anodized aluminum, Disc: FKM or FDA Buna-N, Stem: Stainless steel, O-Ring: Buna-N, Spout unleaded: Brass (13/16″ OD) aluminum (13/16″ OD).
Certifications & Listings:
FIG 300ALM/FIG 300ALMM - Water nozzles to military drawing #13225E1707 and #13225E9094; Fuel
nozzles to CID AA-52030, Type I, Size 1, Class A or B, Style 1
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
