EVC597 M12 Female Cordset, 65 ft., 20 m, IFM

$80.00
SKU EVC597

EVC597 M12 Female Cordset, 65', IFM

*Railroad customers- used with sand silo and sand transporter tank level sensors.

Downloads:

Data Sheet EVC597

Operating Instructions

UL Approvals

REACH RoHs Declaration

Features:

  • Resistant to oils and coolants
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Vibration and shock resistant thanks to coupling ring with locking mechanism
  • Continuously high EMC interference protection against noise field interference

Quick Specs:

  • P/N:  EVC597
  • Manufacturer:  IFM Efector
  • Connector:  M12 female
  • Cord Lead Length:  65 feet (20 meters)
  • IFM Code:  ADOAH040MSS0020C04
Application
System Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability
Free from silicone yes
Electrical data
Operating voltage [V] < 50 AC / < 60 DC
Protection class III
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25...90
Note on ambient temperature
cULus: ...75
Ambient temperature (moving) [°C] -25...90
Note on ambient temperature (moving)
cULus: ...75
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 793
Dimensions [mm] 26.5 x 15.5 x 36.5
Material housing: TPU (urethane) orange; sealing: FKM
Material nut brass, nickel-plated
Drag chain suitability yes
Drag chain suitability
Bending radius for flexible applications min. 10 x cable diameter
Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles ≥ 2 Mio.
Torsional strain ± 180 °/m
Remarks
Pack quantity 1 pcs.

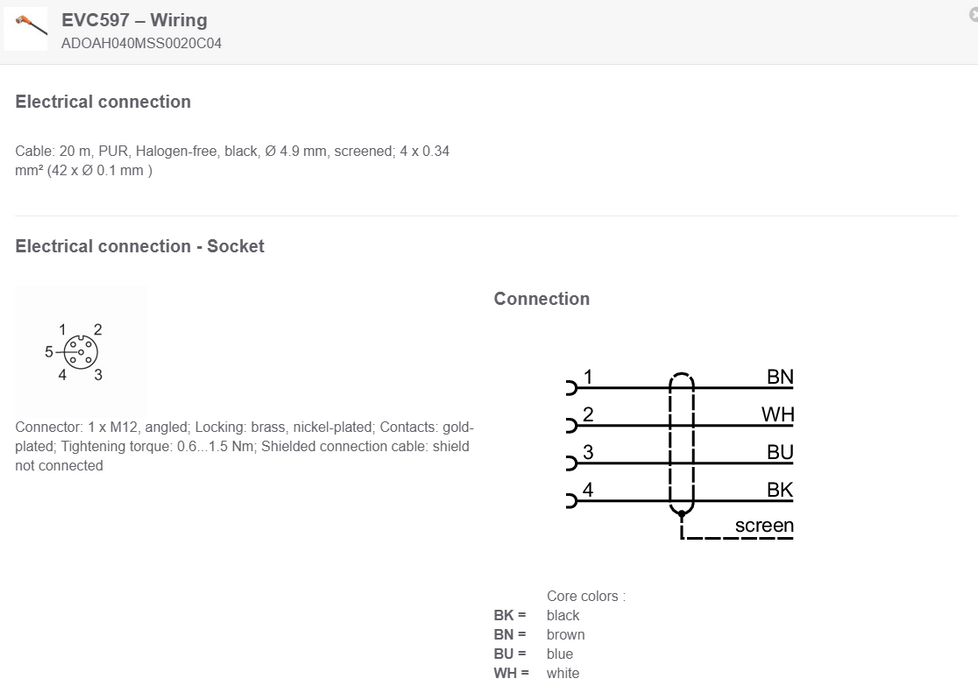

Electrical connection

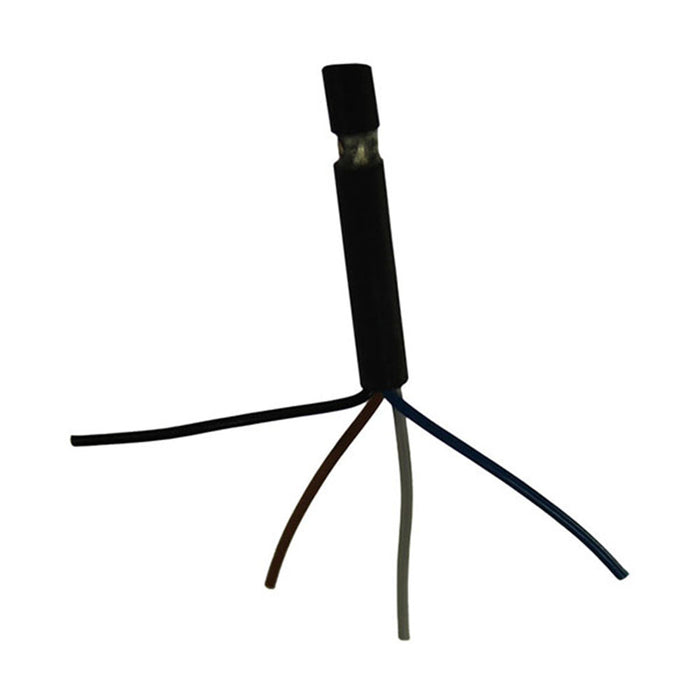

Cable: 20 m, PUR, Halogen-free, black, Ø 4.9 mm, screened; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket

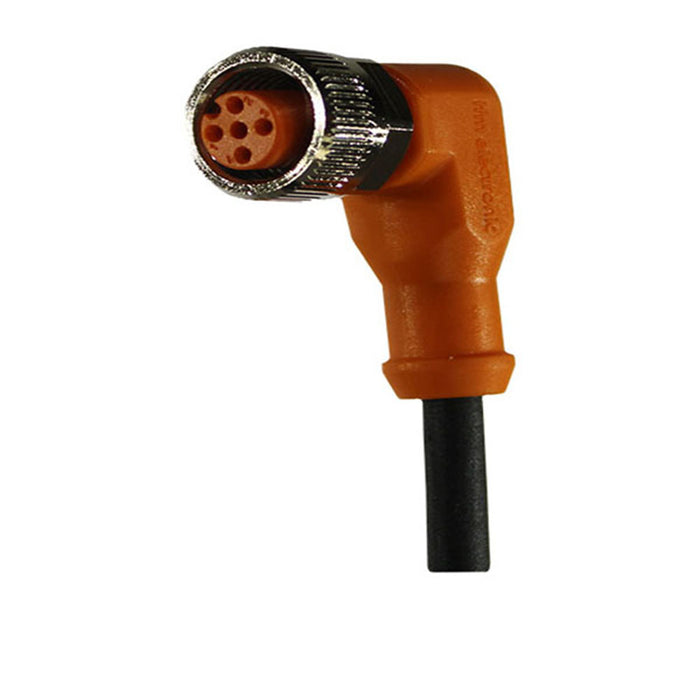

Connection Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Shielded connection cable: shield not connected



*Direct replacement in CWI Railroad Sand Systems.

*Standard cord used with tuning fork style sand level sensors.
