Morrison Bros Co. Fig. 158B, Back Pressure Valve, Vertical, Single poppet, One Way Check Valve, Maintain Production Flow, One Direction, Heavy Spring, Back Pressure Applications, 5 to 7 PSI spring settings.

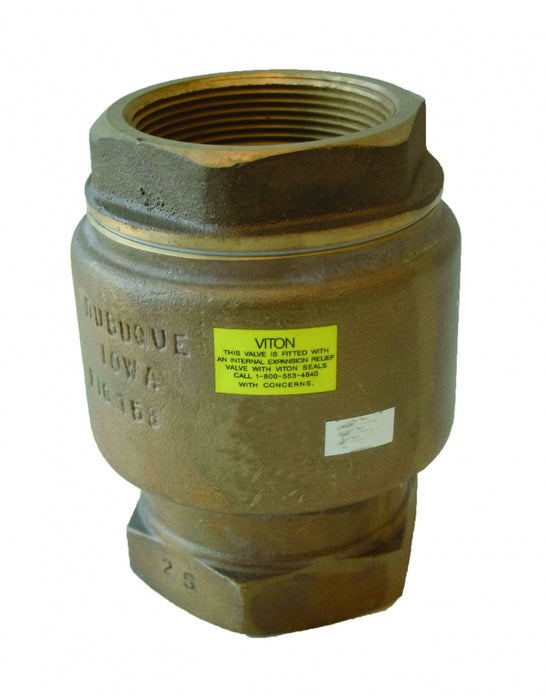

Morrison Bros Fig. 158B Back Pressure Valve - Vertical

by Morrison Bros Co
$165.43
SKU 158B--0300 AV
Item Numbers

Item Series:

Morrison Bros Fig. 158B Back Pressure Valve - Vertical

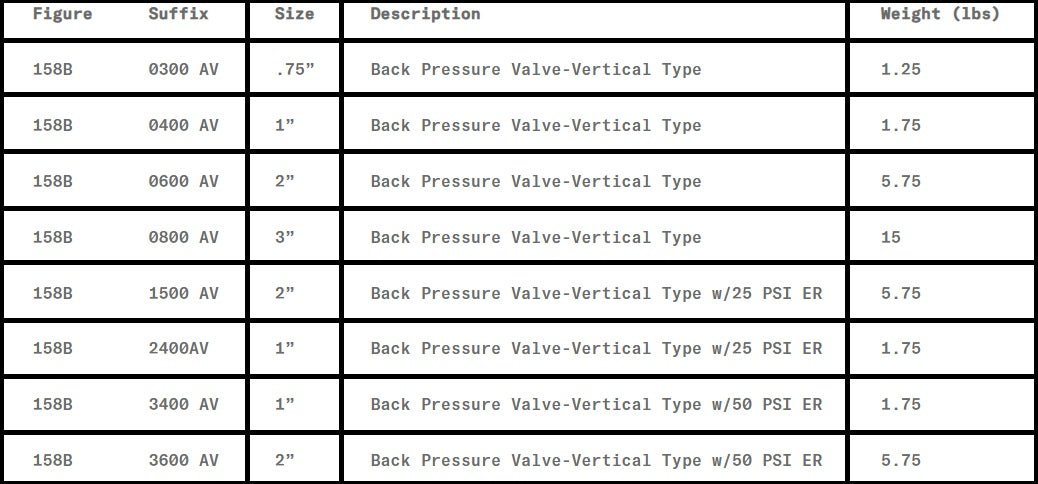

Product Ordering Information:

Products Description & Features:

Description:

Single poppet one way check valve used to maintain product flow in one direction. Heavy spring for back pressure applications.

NOTE: Opening pressure settings are approximate.

Features and Details:

• Metal-to-metal seats • Thermal expansion available (25 or 50 PSI approximate) • 5 to 7 PSI spring settings.

Materials of Construction:

• Body: Brass • Cap: Brass • Plunger: Brass • Spring: Stainless steel • Expansion valve: Brass with FKM.

    Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!

    sales@railyardsupply.com

    (610) 652-5218
