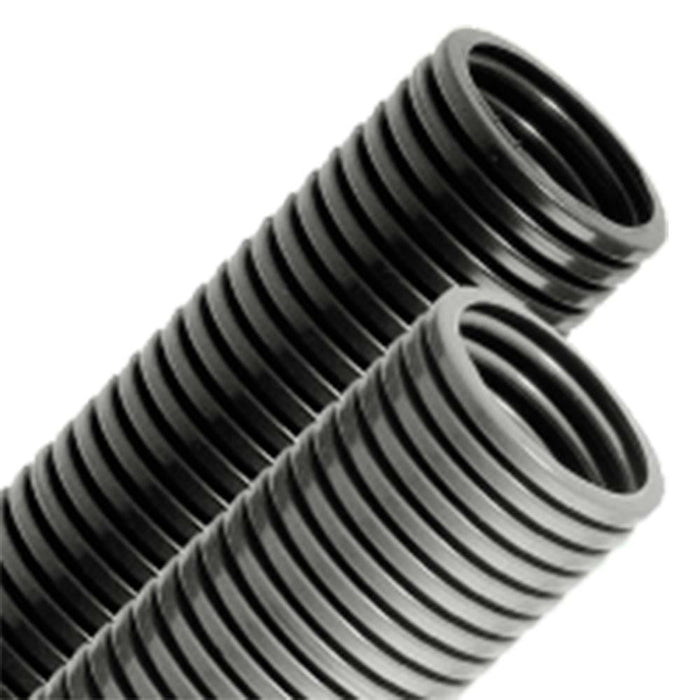

ROHRflex PA6L
Corrugated conduit
- General purpose
- Medium wall
- UL94HB
Protective all-plastic tubing, internally and externally corrugated, fine or coarse profile, reduced fire protection, economical, HB (UL 94)
Materials: PA 6 plastics mod.
Temperature: -25 C to 120 C
Protection Class: IP68, IP69K
Sizes and PN:
| Size | Product Number | Reel Size (ft) |
| 5/16" | 0261.202.010 | 164 |
| 3/8" | 0261.202.012 | 164 |
| 1/2" | 0261.202.016 | 164 |
| 3/4" | 0261.232.023 | 164 |
| 1" | 0261.232.029 | 82 |
| 1-1/4" | 0261.232.036 | 82 |
| 1-1/2" | 0261.232.048 | 82 |
Applications:
- Automation
- Shipbuilding
- Electrical Installations
- Automotive
- Machinery and Equipment
- Renewable Energies
Properties:
- air- and liquid-tight
- oil resistant up to + 80°C
- benzine resistant
- widely resistant to acid and solvents
- free of silicone, cadmium, halogen
- flame retardant UL 94 HB
- black UV-resistant, grey limited resistance
- DIN 5510, part 2
- UL 1696 / CSA C22.2 No 227.3
- outdoor and indoor
