ROHRflex PA6 Conduit
Corrugated Conduit
- Medium wall
- UL94VO
- Self-extinguishing
- Flame retardant
- Low smoke and toxicity

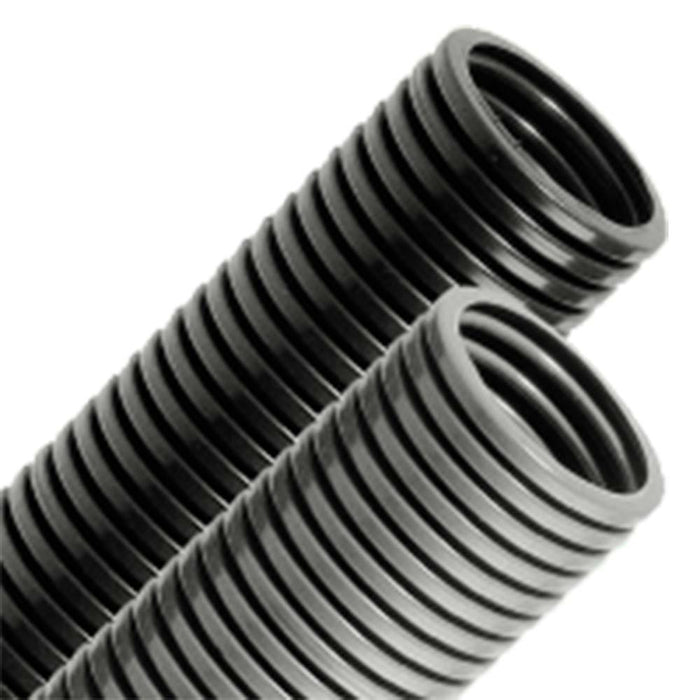

Protective all-plastic tubing, internally and externally corrugated, fine or coarse profile, standard, for almost all applications, V0 (UL 94), EN 45545-2 (HL3).

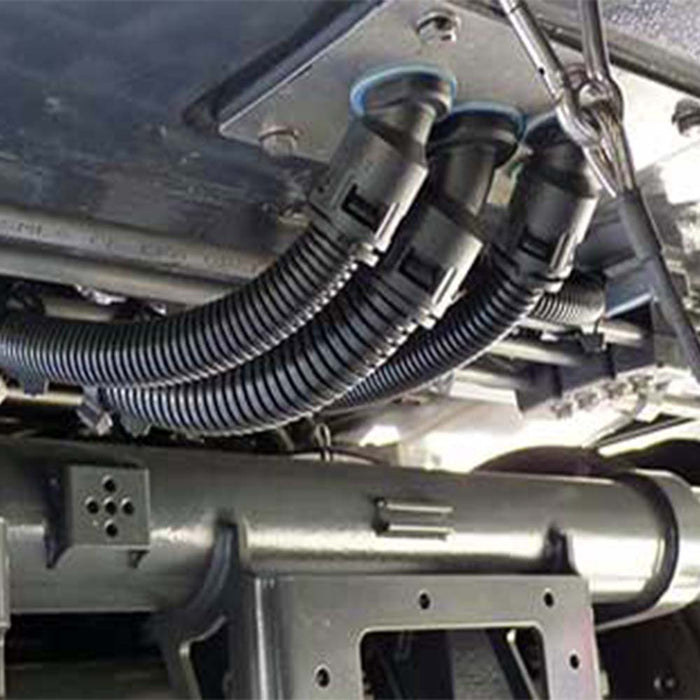

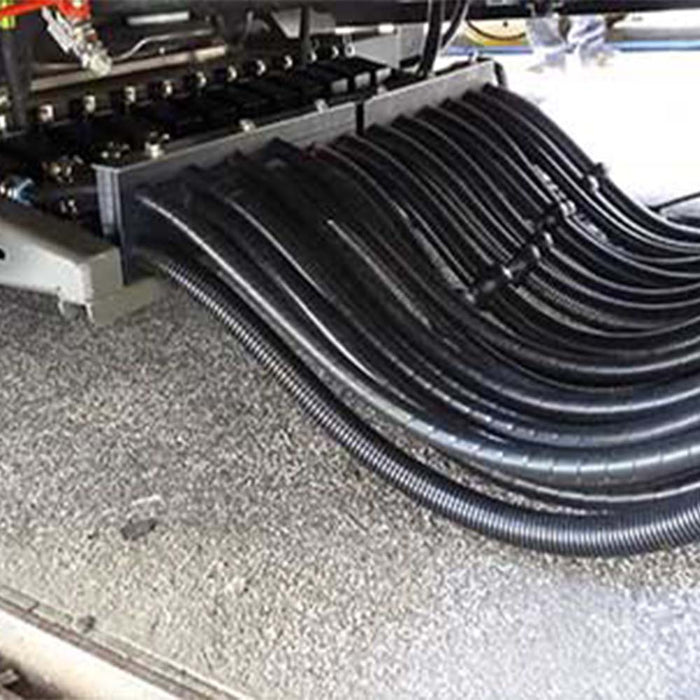

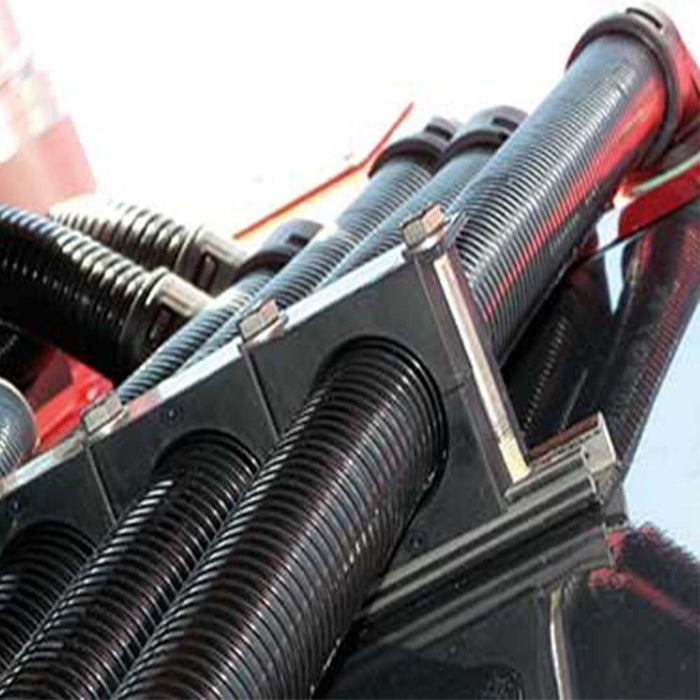

Internally and externally corrugated PA6 conduit. Designed for electrical installations and applications on machinery and general-purpose applications acc. to DIN EN 60204 and UL 1696. For indoor and outdoor applications. For static interior and exterior applications in railway cars.
Material: PA 6 plastics
Temperature: -40 C to 150 C
Protection Class: IP68, IP69K
Sizes and PN:
| Size | Product Number | Reel Size (ft) |
| 1/4" | 0233.202.006 | 164 |
| 5/16" | 0233.202.010 | 164 |
| 3/8" | 0233.202.012 | 164 |
| 1/2" | 0233.202.016 | 164 |
| 3/4" | 0233.202.023 | 164 |
| 1" | 0233.232.029 | 82 |
| 1-1/4" | 0233.232.036 | 82 |
| 1-1/2" | 0233.232.048 | 82 |
Applications:
- Automation
- railway
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
- Renewable energies
Properties:
- air- and liquid-tight
- oil resistant up to + 80°C
- benzine resistant
- widely resistant to acid and solvents
- free of silicone, cadmium, halogen
- flame retardant UL 94 VO
- black excellent UV-resistant, grey limited resistance
- DIN 5510, part 2
- ASTM E162, ASTM E662, ASTM E1354, SMP 800C Approved
- UL 1696 / CSA C22.2 No 227.3
Call for product discounts and alternative reel lengths today!
