ROHRflex PA12 Conduit

$154.00
SKU 0236.202.006
Size

ROHRflex PA12 Conduit

Corrugated Conduit

  • Outdoor Applications
  • Medium Wall
  • UL94V2
  • High UV Resistance
  • Highly Flexible

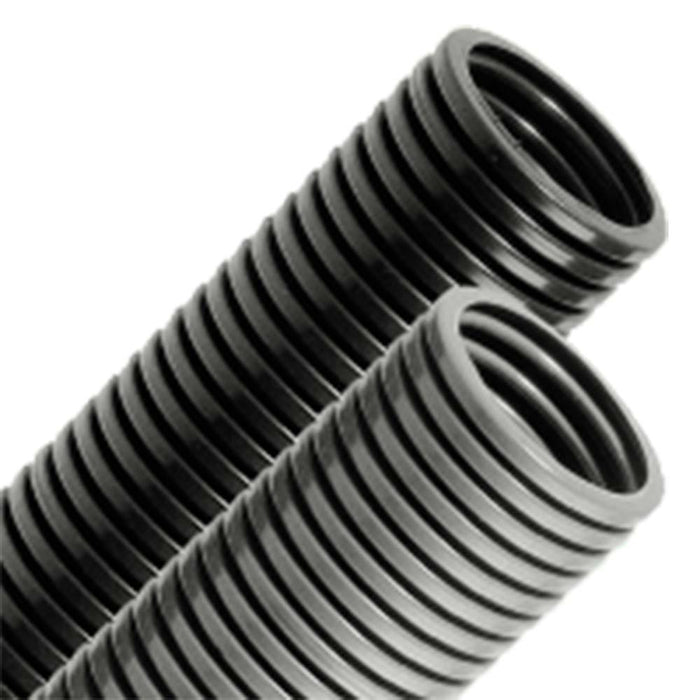

Protective all-plastic tubing, internally and externally corrugated, fine or coarse profile, for very flexible applications, outdoor area, V2 (UL 94), EN 45545-2 (HL2).

These highly flexible conduits are made specially for indoor and outdoor applications with high mechanical stresses and are specially designed for applications requiring frequent reversed bending and continuous motion, e.g.  for robotics.  Internally and externally corrugated PA12 conduit.  Designed for electrical installations and applications on machinery and general-purpose applications acc. to DIN EN 60204 and UL 1696.  Also used for static and dynamic applications indoors and outdoors especially for outdoor applications on railway vehicles.

Material: PA 12 plastics

Temperature: -50 C to 130 C

Protection Class: IP68, IP69K

Sizes and PN:

Size Product Number Reel Size (ft)
1/4" 0236.202.006 164

5/16"

0236.202.010 164
3/8" 0236.202.012 164
1/2" 0236.202.016 164
3/4" 0236.202.023 164
1" 0236.232.029 82
1-1/4" 0236.232.036 82
 1-1/2" 0236.232.048 82

 Applications:

  • Automation
  • railway
  • Shipbuilding
  • Electrical installations
  • Automotive
  • Machinery and equipment
  • Renewable energies

Properties:

  • high alternate bending strength
  • air- and liquid-tight
  • oil resistant and benzine resistant
  • widely resistant to acid and solvents
  • free of silicone, cadmium, halogen
  • highly self extinguishing
  • flame retardant UL 94 V2
  • ASTM E162, ASTM E662, ASTM E1354, SMP 800C Approved
  • black excellent UV-resistance
  • DIN 5510, part 2
  • UL 1696 / CSA C22.2 No 227.3

Call for product discounts and alternative reel lengths today!
