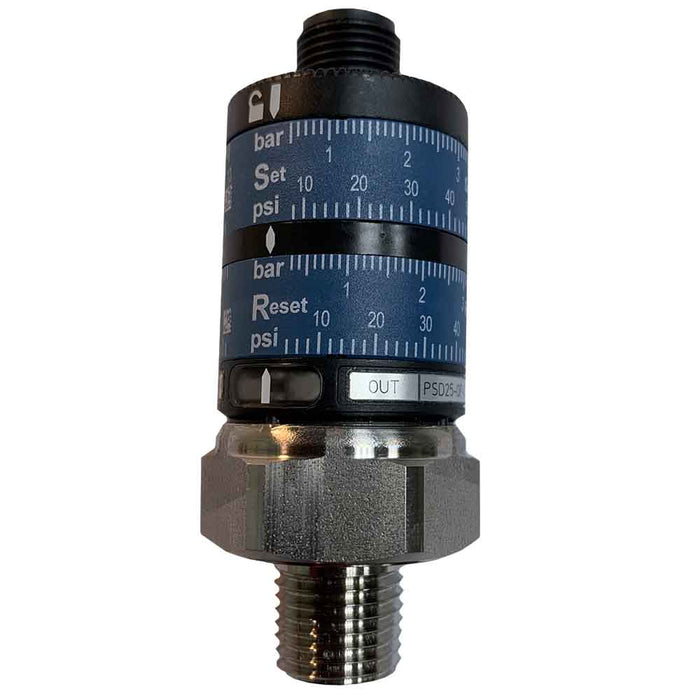

ProSense PSD25-0P-0145H Pressure Switch
$140.00
SKU PSD25-0P-0145H
ProSense PSD25-0P-0145H Pressure Switch
Downloads:
Quick Specs:
- Manufacturer: ProSense
- Part Number: PSD25-0P-0145H
- Item: Electronic pressure switch
- Setpoint Range: 7.5-145 psi
- Sensing Element Material: 316 Stainless Steel
- Switching Output: PNP, N.O./N.C. Complementary
- Process Connection: 1/4" male NPT threads
- Operating Voltage: 9.6-32 VDC
- Housing Rating: IP67
- Electrical Connection: 4-pin M12
Note: Cable must be purchased separately
*can be found in CWI Railroad System Specialists Locomotive Sand Systems.
Description:
ProSense electronic pressure switch, 7.5 to 145 psi set point, 316 stainless steel sensing element, PNP, N.O./N.C. complementary, 1/4in male NPT process connection, 9.6 to 32 VDC operating voltage, 4-pin M12 quick-disconnect.
Overview:
Pressure switches supply simple setpoint-triggered signals for a variety of applications. MPS25 series mechanical models with field adjustment offer measuring ranges from vacuum to 7500 psig. PSD25 series electronic models with adjustable dial settings use strain gauge technology (no internal moving parts) to provide over 50 million switch cycles with no drift.
