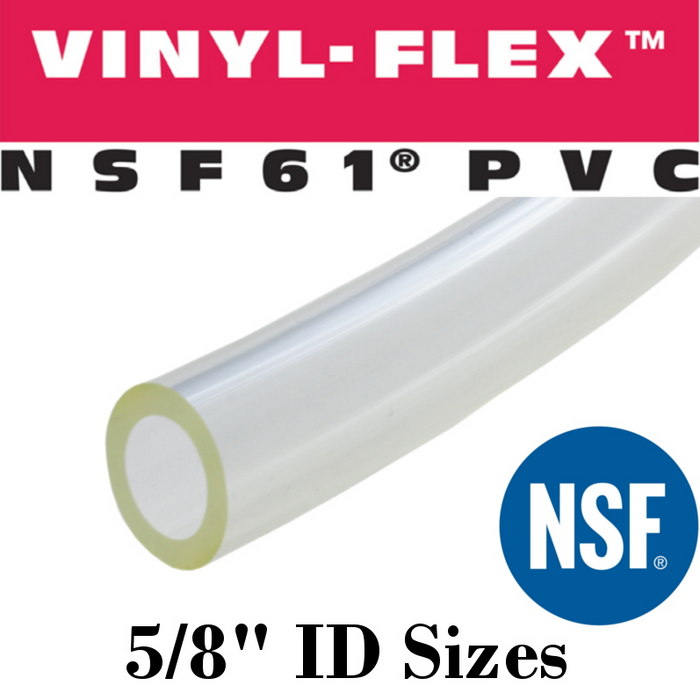

Vinyl-Flex™ PVC NSF 61® (5/8" ID Sizes) PVC Polyvinylchloride Hose
$56.33
SKU PVC58-34ANA
Item:
Vinyl-Flex™ PVC NSF 61® (5/8" ID Sizes) PVC Polyvinylchloride Hose
Downloads:
Specifications:
PVC58-34ANA (5/8″ x 3/4″ x 100ft, PVC Vinyl-Flex™ NSF 61®) (Shown Below)
| Inside Diameter | 0.625" (5/8") |
|---|---|
| Outside Diameter | 0.750" (3/4") |
| Wall Thickness | 0.062" |
| Temperature Range | 15ºF to 150°F |
| Vacuum Rating | 28" HG |
| Tolerance | +/- .004"/.008" |
| Hardness | Shore 73A |
| Safety Factor | 3:1 |
| Material | PVC (polyvinylchloride) |
| Max Working Pressure | 30 psi |
| Media | Gases & Liquids |
| Compliance | FDA Compliant - RoHS - REACH - USP Class IV |
| Certifications | NSF 61® |
| Fitting Compatibility | Hose Barbs |
PVC58-78ANA (5/8″ x 7/8″ x 100ft, PVC Vinyl-Flex™ NSF 61®) (Shown Below)
| Inside Diameter | 0.625" (5/8") |
|---|---|
| Outside Diameter | 0.875" (7/8") |
| Wall Thickness | 0.125" |
| Temperature Range | 15ºF to 150°F |
| Vacuum Rating | 28" HG |
| Tolerance | +/- .004"/.008" |
| Hardness | Shore 73A |
| Safety Factor | 3:1 |
| Material | PVC (polyvinylchloride) |
| Max Working Pressure | 40 psi |
| Media | Gases & Liquids |
| Compliance | FDA Compliant - RoHS - REACH - USP Class IV |
| Certifications | NSF 61® |
| Fitting Compatibility | Hose Barbs |
Quick Specs:
P/N:
- PVC58-34ANA
- PVC58-78ANA
Manufacturer: ATP (MADE IN USA)
Type: Vinyl-Flex™ PVC NSF 61® (5/8" ID Sizes) PVC Polyvinylchloride Hose
Description:
Vinyl-Flex™ PVC Hose is a clear PVC hose suited for low pressure applications of both fluid and compressed gases. Vinyl-Flex PVC meets FDA requirements and is NSF 61® certified, making it ideal for use in food and beverage applications.
- Certified for Direct Contact with Potable Water, Food & Beverage
- Lightweight and Flexible
- Phthalate Free
