Item:

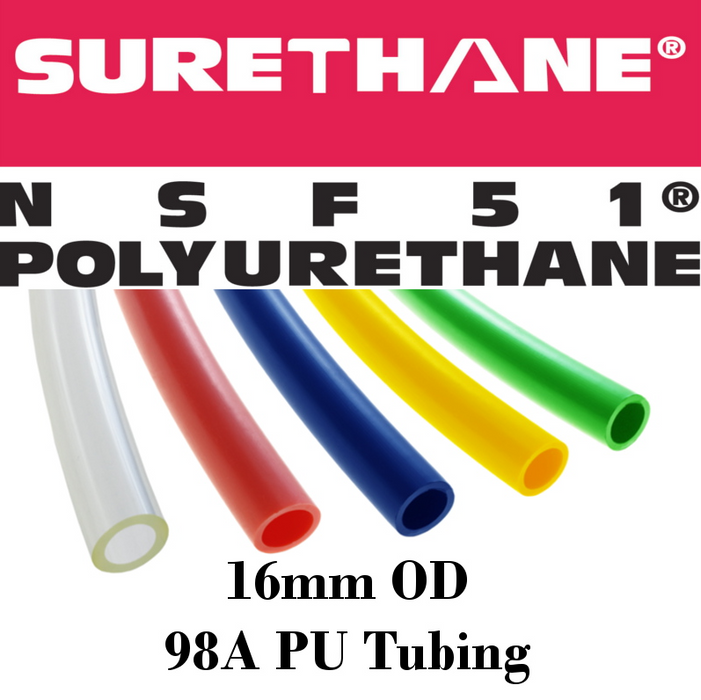

Surethane® Polyurethane (16mm) OD 98A PU Tubing
Downloads:
Specifications:
| Material | PU (Polyurethane) |
|---|---|
| Hardness | Shore 98A |
| Temperature Range | -40F to 150F |
| Max Working Pressure | 140 psi |
| Vacuum Rating | 28" HG |
| Safety Factor | 3:1 |
| Tolerance | +/- .006" |
| Media | Gasses and Liquids |
| Compliance | FDA Compliant & UL94HB |
| Certifications | NSF 51® |
Quick Specs:
16mm OD Surethane Models |
Black | Clear | Clear Blue | Green | Light Blue | Navy Blue | Red | Yellow | |
|---|---|---|---|---|---|---|---|---|---|
| 100 ft | PU16MABK | PU16MAC | PU16MACB | PU16MAG | PU16MALB | PU16MANB | PU16MAR | PU16MAW |
Manufacturer: ATP (MADE IN USA)
Size/Type: Surethane® Polyurethane (16mm) OD 98A PU Tubing
Description:
Surethane® Polyurethane Tubing is extruded by ATP from ether-based resin, providing excellent resistance to hydrolysis and oil. Surethane's 98 durometer construction provides abrasion resistance and memory support.
- Certified for Direct Contact with Food Components and Equipment
- Superior Kink-Resistance
- Excellent Flexibility over a Broad Temperature Range
- Abrasion-Resistant
- Largest Size and Color Range of all Tubing Sizes
- Resists Moisture Absorption
- Resistant to Harmful UV Rays (Black Only)
Applications:
- Hose, Pipe and Fittings
- Push to Connect Fittings
- Pneumatic Tubing and Fittings
- Air Hoses
