Item:

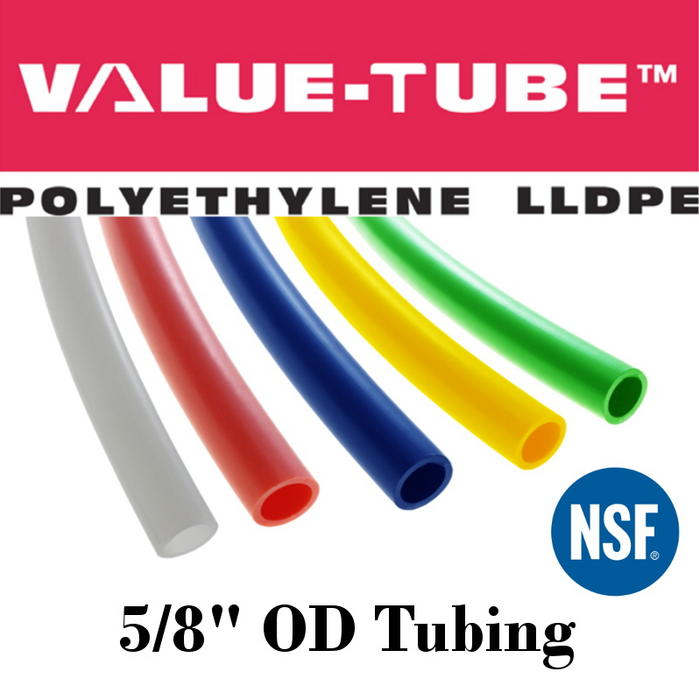

Polyethylene (5/8") OD Value-Tube
Downloads:
Specifications:
| Temperature Range | -50ºF to 140°F |
|---|---|
| Vacuum Rating | 28" HG |
| Tolerance (3/4" to 5/8") | +/- .008" |
| Hardness | Shore 98A |
| Safety Factor | 3:1 |
| Material | LLDPE |
| Max Working Pressure | 100 psi |
| Media | Gasses and Liquids |
| Compliance | FDA Compliant |
| Certifications | NSF 61® |
Quick Specs:
| 5/8" Value-Tube LLDPE Models (NSF 61®) | Black | Navy Blue | Green | Natural | Red | Yellow |
| 100 ft | PE58ABK | N/A | N/A | PE58ANA | N/A | N/A |
| 500 ft | PE58CBK | N/A | N/A | PE58CNA | N/A | N/A |
Manufacturer: ATP (MADE IN USA)
Size/Type: Polyethylene (5/8") OD Value-Tube
Description:
Value-Tube™ Linear Low-Density Polyethylene Tubing is extruded from 100% non-toxic, FDA compliant ingredients.
- Chemically Inert
- BPA Free
- Impermeable to Both Gas or Liquids
- Excellent Dielectric Properties
- NSF 61® Certified for Use with Potable Water*
- UV-Stabilized
- Phthalate Free
- Made in Ohio, USA
*Note: Select Sizes are NSF 61®
