Item:

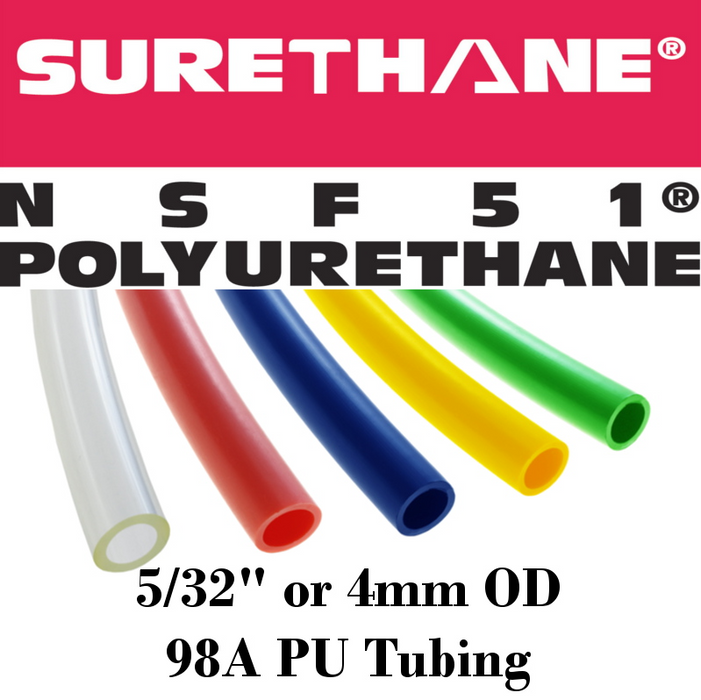

Surethane® Polyurethane (5/32″ or 4mm) OD 98A PU Tubing
Downloads:
Specifications:
| Temperature Range | -40ºF to 150°F |
|---|---|
| Vacuum Rating | 28" HG |
| Tolerance | +/- .005" |
| Hardness | Shore 98A |
| Safety Factor | 3:1 |
| Material | PU (Polyurethane) |
| Max Working Pressure | 200 psi |
| Media | Gasses and Liquids |
| Compliance | FDA Compliant & UL94HB |
| Certifications | NSF 51® |
Quick Specs:
| 4mm (5/32") OD Surethane Models | Black | Clear | Clear Blue | Green | Light Blue | Navy Blue | Red | White | Yellow |
| 100 ft | PU04M/532ABK | PU04M/532AC | PU04M/532ACB | PU04M/532AG | PU04M/532ALB | PU04M/532ANB | PU04M/532AR | PU04M/532AW | PU04M/532AY |
| 500 ft | PU04M/532CBK | PU04M/532CC | PU04M/532CCB | PU04M/532CG | PU04M/532CLB | PU04M/532CNB | PU04M/532CR | PU04M/532CW | PU04M/532CY |
| 1000 ft | PU04M/532DBK | PU04M/532DC | PU04M/532DCB | PU04M/532DG | PU04M/532DLB | PU04M/532DNB | PU04M/532DR | PU04M/532DW | PU04M/532DY |
Manufacturer: ATP (MADE IN USA)
Type: Surethane Polyurethane Tubing
Colors: Black, Clear, Clear Blue, Green, Light Blue, Navy Blue, Red, White, Yellow
Sizes: 100ft, 500ft, 1000ft
Description:
Surethane® Polyurethane Tubing is extruded by ATP from ether-based resin, providing excellent resistance to hydrolysis and oil. Surethane's 98 durometer construction provides abrasion resistance and memory support.
- Certified for Direct Contact with Food Components and Equipment
- Superior Kink-Resistance
- Excellent Flexibility over a Broad Temperature Range
- Abrasion-Resistant
- Largest Size and Color Range of all Tubing Sizes
- Resists Moisture Absorption
- Resistant to Harmful UV Rays (Black Only)
Applications:
- Hose, Pipe and Fittings
- Push to Connect Fittings
- Pneumatic Tubing and Fittings
- Air Hoses
CWI has been using (ATP) Advanced Technology Products for years because their products prove themselves reliable time after time. They rely on them to not burst, causing greater up time for your equipment.
Please inquire about product information, installation services, bulk pricing, variable lengths or any questions you may have!
