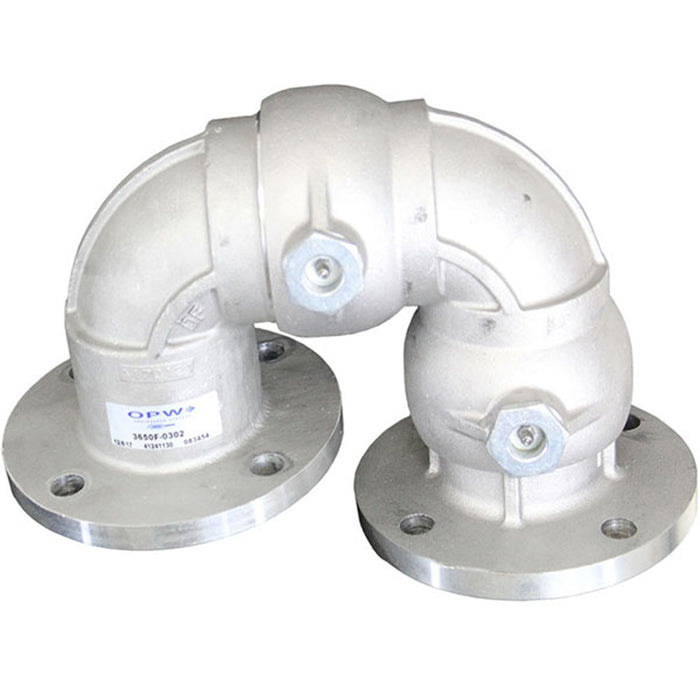

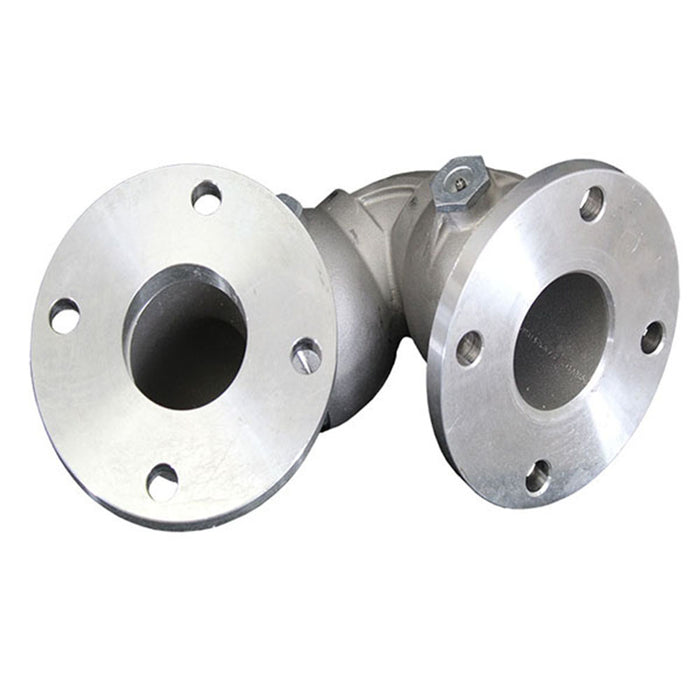

OPW 3650F-0302 Aluminum 3" Double Swivel Joint, 150# Flanges
$1,157.00
SKU 3650F-0302
OPW 3650F-0302 Aluminum 3" Double Swivel Joint, 150# Flanges
Downloads
Quick Specs
- Part #: 3650F-0302
- Series: 3600 Series Swivel Joints- Cast Aluminum (3000 Series Overall)

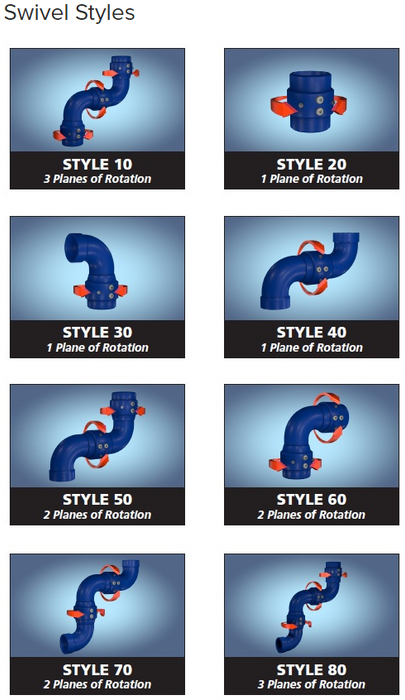

- Basic Style: Style 50, 2 Planes of Rotation
- Specific Style: Style 3650F
- End Connections: 3" 150# ANSI Flanges both ends
- Main Seal Material: Fluorocarbon (Viton)
- Body Material: Aluminum
- Grease Fitting: Yes
- Dual Race Ball Bearings

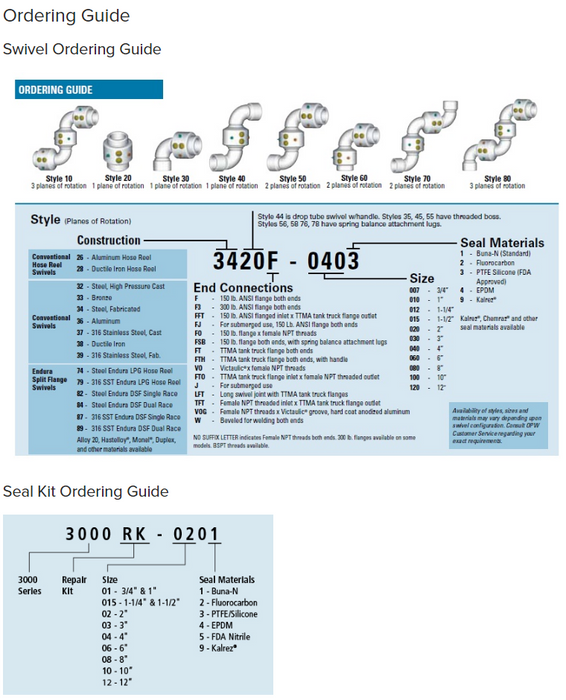

- Rebuild Kit Required: 3000RK-0302 (Requires 2 kits- 1 per plane of swivel)
- Manufacturer: OPW Engineered Systems

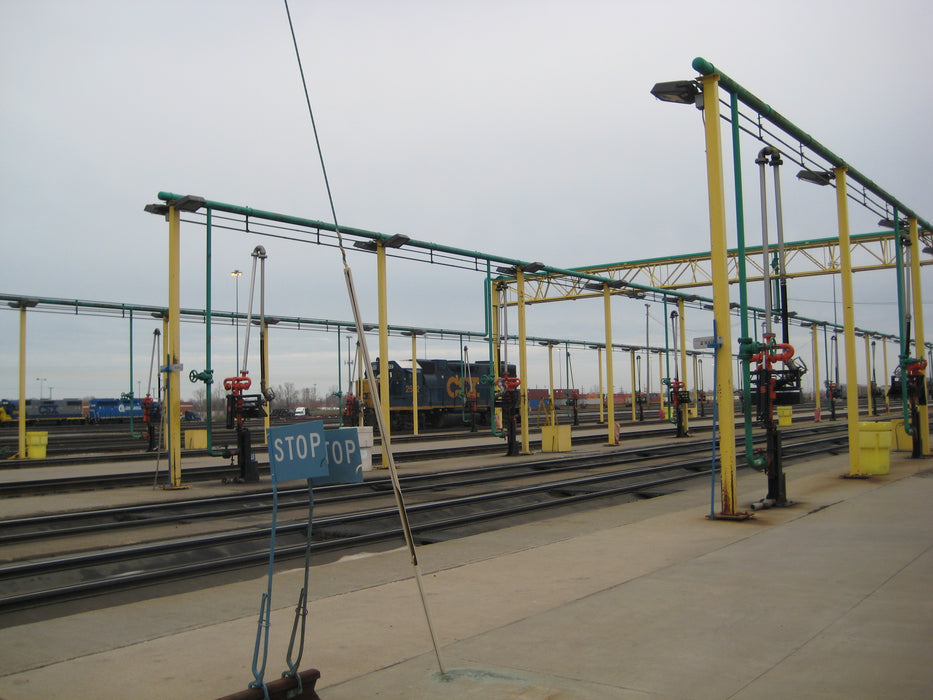

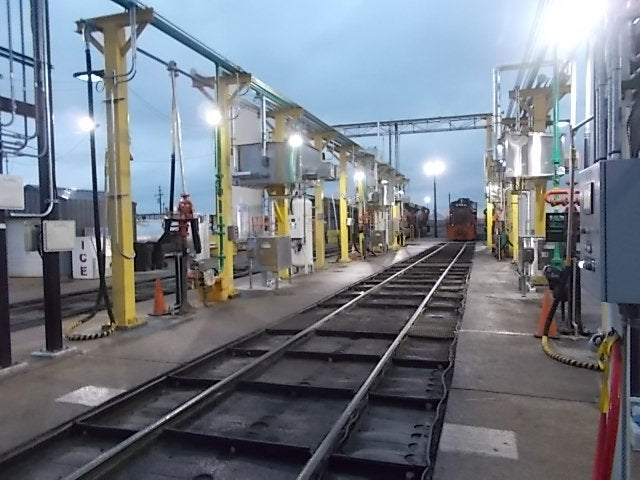

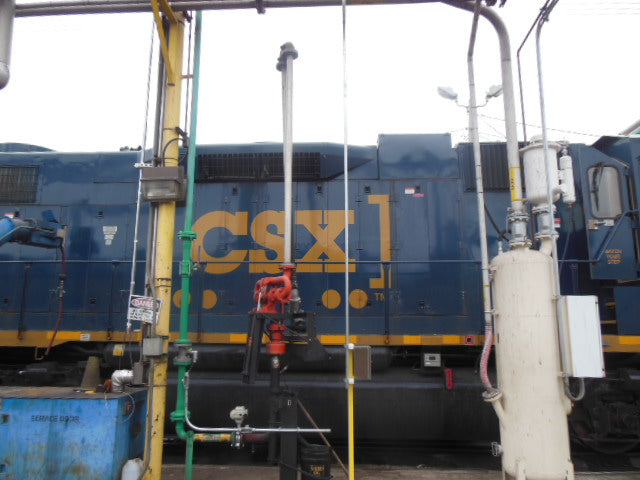

*Commonly found at the apex of a railroad fuel crane.
General:
Available in a variety of materials, sizes and styles to meet virtually any application.
- Sizes: 3/4” to 12”
- Standard Materials: Aluminum, Bronze, Carbon Steel, Ductile Iron, 316 Stainless Steel
- Standard Seals: Buna-N, Fluorocarbon, PTFE, EPDM, Neoprene, Kalrez®
- End Connections: FNPT, 150/300 ANSI Flanged Ends, Butt/Socket Welds
Metal Options
- Aluminum (ASTM B26, A356 T6)
- Bronze ( ASTM B62-83600)
- Carbon Steel (ASTM A105)
- Ductile Iron (ASTM A-536)
- Stainless Steel (ASTM A351-CF3M/CF8M)
Seal Options
- Buna
- Fluorocarbon
- PTFE
- EPDM
- Neoprene
- Kalrez
Lubrication
Lubrication plays an important role in the life expectancy of a swivel joint. OPW has done extensive research to determine the best lubricants for our products. Our standard is a High Performance Synthetic Lubricant (OPW part # 880-0089).
- Specially formulated to reduce friction & wear.
- Requires only annual lubrication
- Will not drip, melt or carbonize
- Complies with FDA regulation 21CFR178.3570
- Temperature Range -40F – 750F (-40C – 399C)
- Not for use with EPT/EPDM Seals. EPT/EPDM seals require the use of OPW 885-0083 lubricant.
